Small size Mini PC Intel

SKU
F11-N100
13 148,50 ₴
В наявності
Ultra-compact, power-packed small size mini PC with Intel 12th Gen N100 CPU, designed for high-performance computing needs. This advanced mini PC supports HDMI2.0 and DP1.4 dual display output and features dual Intel RJ45 Gigabit LAN ports, plus onboard 8G RAM. Experience seamless wireless connectivity with its built-in Wifi/Bluetooth without the need for antennas. Adapted to both Windows 10/Linux, this mini PC delivers superior performance and versatility, perfect for desktop or gaming use. Get your hands on the future of desktop computing!
Small size Mini PC Intel 12th Gen N100, Dual RJ45, HDMI, DP, Support PXE, AWAL, WOL, RTC, Desktop Computer like NUC наявний для покупки з кроком збільшення в 1

Introducing the small size mini PC with Intel Processor N100 12th Genneration, a remarkably powerful and compact desktop solution. Offers a robust, efficient, and smart computing experience, meeting the needs of both office and gaming users alike.

Benefiting from the precision craftsmanship synonymous, this Mini PC is an unrivaled machine that boasts an Intel Alder Lake 12th Gen N100 CPU. The onboard 8G RAM LPDDR5, which supports 4800 MHz, adds an excellent layer of powerful memory performance. Not forgetting storage, it supports both M.2 and SATA, ensuring a faster boot-up, quicker file and app load times, and efficient data retrieval.

Its key features stand out in a crowded market place of mini PCs. First off, its flexible support of operating systems including Windows 10/11, Ubuntu, and Red Hat Linux provides versatility and options for differing user preferences. Secondly, the inclusion of a dual-band Wi-Fi module (2.4G or 5G 802.11b/g/n/ac) & Bluetooth 4.2 module grants seamless and high-speed connectivity and data transfer.

Adding to these, it houses Dual Intel RJ45 Gigabit LAN ports, and HDMI2.0 and DP1.4 output capabilities for dual display output synchronously, making it a great companion for multitaskers. To tackle the problem of heating, this mini PC has an onboard copper fan for excellent heat dissipation, allowing the device to work steadily over longer periods.

Moreover, this Mini PC's compact size allows it to be placed horizontally, stand vertically, or even be fixed to the back of a monitor by the VESA bracket. This flexibility makes it perfect for any workspace setup, whether you have vast desktops or minimal desks.

In summary, the Small Size Mini PC Intel 12th Gen N100 offers a comprehensive suite of features wrapped in a small but powerful package. With its sleek dark gray plastic shell and dimensions of 124.5mm*112mm*43.8mm, this Mini PC is a great option for users looking for a compact, high-performing, and versatile computer. Backed by a 12-month warranty and available for immediate shipping, this mini PC is a reliable tech investment that delivers peak performance and optimum versatility. Enjoy an unparalleled computing experience that adapts to both your work and play needs with the Small Size Mini PC Intel 12th Gen N100 by EGlobal.

Features

  • Dual Intel RJ45 Gigabit LAN ports
  • Support HDMI2.0 out and DP1.4 out dual display output synchronously
  • Onboard a copper fan for heat dissipation can keep the computer steady working long time
  • Compact size, can be placed horizontally, stand vertically
  • Can be fixedco-friendly back of monitor by VESA bracket.

Images

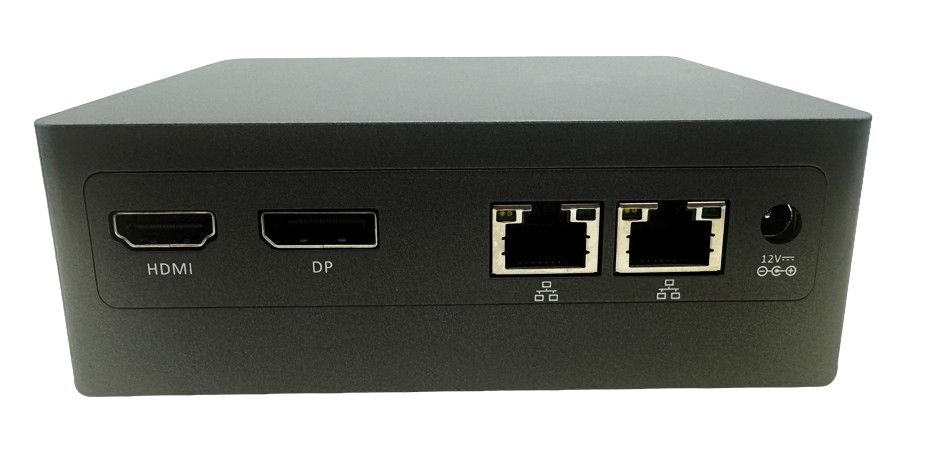

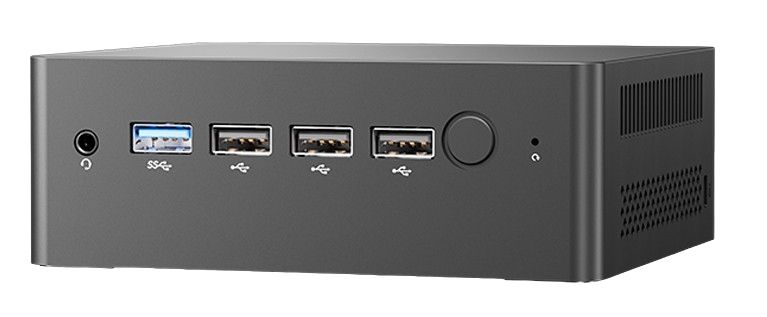

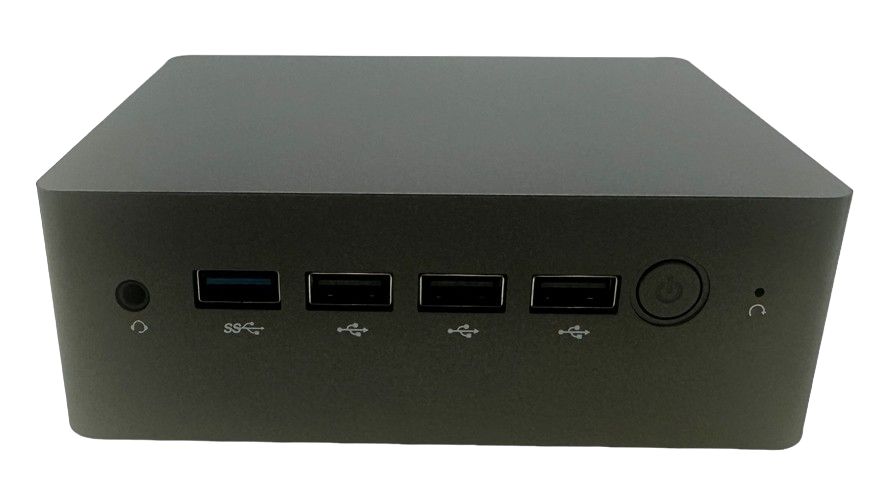

Front View of F11 mini PC Back View of F11 mini PC

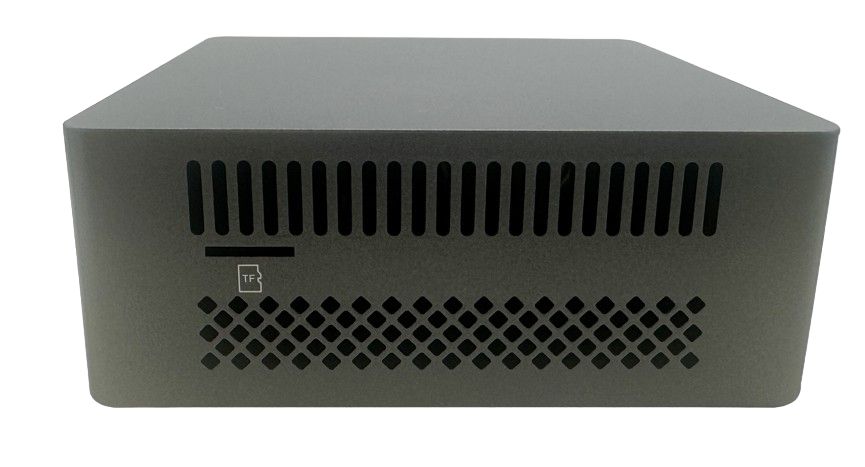

Left View of F11 mini PC Right View of F11 mini PC

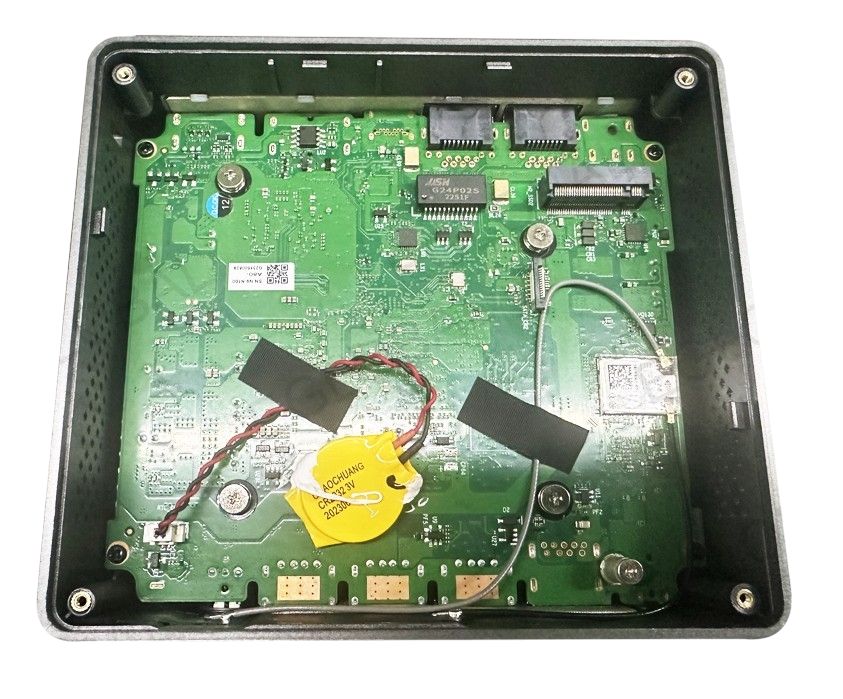

Inside View of F11 mini PC

Specification

Basic Information:

CPU Intel® Alder Lake 12th Gen N100, 4 Cores 4 threads, 0.8 GHz upto 3.4 GHz, TDP 6W, 6MB Intel Smart Cache, Intel® UHD Graphics Intel® 24EUS
TDP 6W
Chipset SOC
Memory Onboard 8G LPDDR5, support 4800 MHz
OS Windows 10/11, support Ubuntu/Red Hat Linux
Network RTL8111H chip, Dual Gigabit NIC
Video RTL Intel® UHD Graphics Genl2 24EUS, up to 750MHz
Wi-Fi:
Module Dual-Band Wi-Fi module (2.4G or 5G 802.11b/g/n/ac) & BlueTooth 4.2 module
Antenna 2 x inner RF cables and without antennas

Power and Working Environment:

Input 100-240V AC/50-60HZ
Output DC +12V/3A
Operating Temperature 0-40°C (32-104°F) with 0.7m/s airflow
Relative Humidity 5%~95% @ 40°(non-condensing)
Seismic standards 1.0 Grms, 5-500Hz, Reference IEC60068-2-64 Testing procedures

Input/output port:

Switch 1 x Power On/Off Switch
Power 1 x 12V/2.5-3A
USB
  • 3 x USB2.0,
  • 2 x USB3.0
Display
  • 1 x HDMI2.0 4K@60HZ,
  • 1 x DP 4K@60HZ (Type-C optional)
TF Card 1 xTF Card slot
LAN 2 x RJ45 Giga LAN
Audio 1 x Audio (MIC & SPK) Realtek ALC269Q
Other 1 x Kensington Lock


Storage:

M.2 1 x M.2 slot for 2280 SATA SSD or 2.5" SATA SSD
UFS2.1 0G/128G/256G
SATA 1 x SATA3.0 slot for 7mm SATA SSD, support 6Gb/s

Product Dimension & Details:

Size 124.5mm* 112mm*43.8mm
Weight Net 1,5KG
Shell Dark gray plastic shell (any customized color for bulk order)
Cooling Mode Intelligent speed control ultra-quiet fan
Functions Support PXE, AWAL, WOL, RTC

Package Content:

Standard
  • 1 x Mini PC,
  • 1 x Power Adapter,
  • 1 x Power Cord,
  • 1 x HDMI cable,
  • 1 x Screws Bag,
  • 1 x Bracket
Optional
  • 1 x User Manual (Paper)

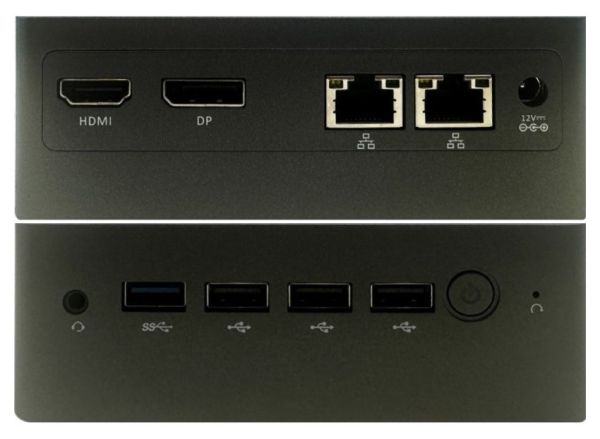

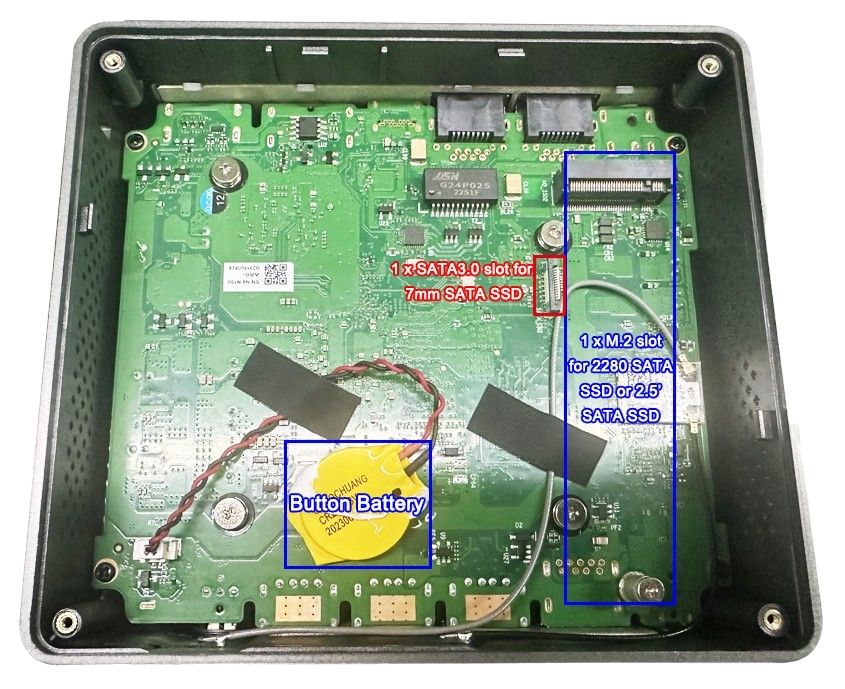

Inside connections of F11 mini PC Outside connections of F11 mini PC
ВиробникEglobal
ПроцесорIntel N100
ЧіпсетIntel Alder Lake-N
ВідеокартаIntel UHD Graphics
Оперативна пам'ять8GB
HDDSSD SATA 2.5", M.2 NVMe
Тип підключенняБезпровідний + провідний
BluetoothЄ
WiFi802.11b/g/n/ac
Типи роз’ємів клавіатуриBluetooth, USB
I/O
Switch 1 x Power On/Off Switch
Power 1 x 12V/2.5-3A
USB
  • 3 x USB2.0,
  • 2 x USB3.0
Display
  • 1 x HDMI2.0 4K@60HZ,
  • 1 x DP 4K@60HZ (Type-C optional)
TF Card 1 xTF Card slot
LAN 2 x RJ45 Giga LAN
Audio 1 x Audio (MIC & SPK) Realtek ALC269Q
Other 1 x Kensington Lock
Тип батареїNo
ОСWindows 10/11/IoT, Linux
Підтримувані мовиMultilanguage
Комплектація
  • 1 x Mini PC,
  • 1 x Power Adapter,
  • 1 x Power Cord,
  • 1 x HDMI cable,
  • 1 x Screws Bag,
  • 1 x Bracket
Optional
  • 1 x User Manual (Paper)
КолірТемно-сірий
МатеріалПластик
Розміри124.5mm* 112mm*43.8mm
Вага1.500000
