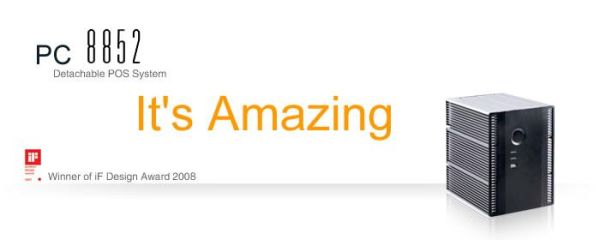

Процессорный блок Citaq PC-8852
| 01. Guide rail for hanging 02. Aluminous cover for heat-transmit 03. Power switch and Indicator 04. USB 2.0 05. Turnable lever 06. Additional PCI Slot 07. 10 / 100M Ethernet Port 08. Parallel Port |
09. 2 x USB,1 x Powered USB 24V,2 x Powered USB 12V 10. LVDS Output 11. 3 x RS232 Interface 12. RS485 Seriel Interface 13. VGA Output 14. PS/2 for Keyboard and 12V Output for TFT Monitor 15. 110-220V Power input |
| Host | |
| CPU | Intel Celeron-M ULV 1GHz, Ultra-Low-Votage CPU |
| RAM | 512MB DDR (Up to 2GB) |
| HDD | 2.5" 80G |
| Монитор | |
| Монитор | 12" or 15" TFT LCD (1024 X 768) |
| Touch Panel | ELD 5 wire resistive touch screen, water-spill proof, 4096 x 4096, 35 million touches (Optional) |
| Интерфейсы | |
| Serial Port | 3 x external RS232, 1 x external RS485 |
| Parallel Port | 1 x external |
| Powered USB | 2 x external(12V), 1 x external(24V) |
| USB2.0 | 1 on front, 2 on rear |
| VGA | 1 x external |
| LVDS | 1 x external (for Second Monitor) |
| LAN | 1 x 10M/100M Ethernet |
| PS/2 | 1 x external (for Keyboard) |
| 12V Output | 1 x external (for Monitor) |
| PCI | 1 x internal |
| Мышь | by USB |
| Опции | |
| Дисплей покупателя | 2 x 20 (5 x 7) Dot Matrix VFD |
| Второй дисплей | 12" TFT LCD (1024 x 768) |
| MSR | Support 1?2?3 tracks |
| Лазерный сканер | Share Pole with Main Monitor or Stand Alone with Short Pole |
| Принтер | Opoz RP-5080 80mm high speed thermal printer |
| Денежный ящик | CR-3040 |
| Монитор | 12" or 15" TFT LCD (1024 X 768) |
| Размеры | |
| Host | 235(L) X 156(W) X 212(H)mm |
| 12" Monitor with VFD Display | 460(L) X 290(W) X 510(H)mm |
| 15" Monitor with Daul Display | 385(L) X 310(W) X 430(H)mm |
CITAQ постоянно совершенствует продукты и оставляет за собой право вносить изменения в спецификацию без предварительного уведомления.
