Module Jack/Magnetics Tib

RJ203 - is an Ethernet interface module that includes a RJ45 connector and a 10/100BaseT transformer interlock.

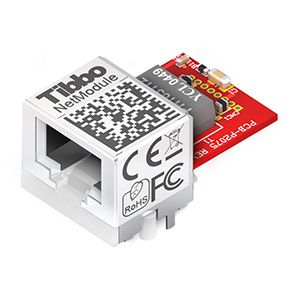

Chassis module RJ203 made this image that allows you to place other items directlyunderneath it, saving space on the circuit board. The front panel of the device - translucent.

RJ203 can be used in conjunction with: EM203 or EM1206 Ethernet modules that are installed directly under the RJ203. This ethernet connector is supplied either alone or in combination with other modules Tibbo.

Specifications:

• Includes standard RJ45 Ethernet connector.
• 100BaseT with integrated magnetics:
• RJ203: compatible with DM9000B IC controller;
• RJ203A: compatible with DM9000EP IC controller.
• Can be used in conjunction with modules EM203 (RJ203) and EM203A (RJ203A).
• Dimensions: 31.0 x 20.0 x 15.5 mm.
• The patented design minimizes required board space.
