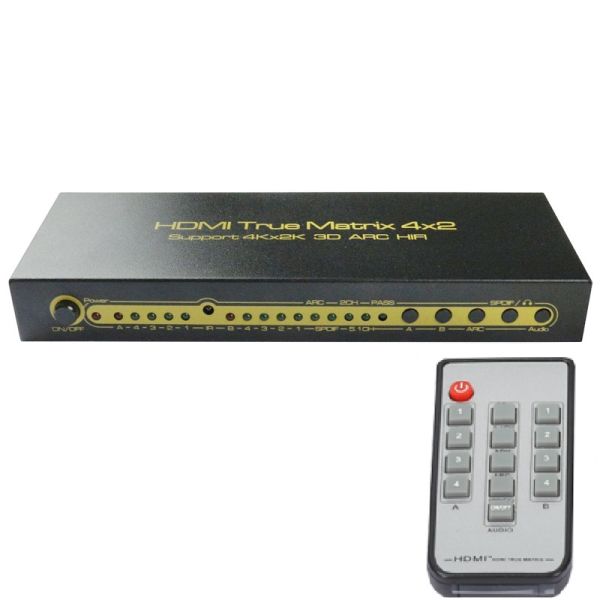

Matrix switcher 4x2 HDMI

Features

1. One HDMI input supports HDMI double mode input, the other three HDMI input support only HDMI single mode input.
2. The output A supports extra audio output by SPDIF port and 3.5mm headphone port.
3. HDMI to achieve the synchronization of audio signal separation. There are ADV/ 2.0CH / 5.1CH three kinds of audio mode options.
4. Support full HD 1080P, full 3D.
5. Support 4K*2K resolution.
6. Support deep color 30 bit, 36 bit, 48 bit.
7. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC.
8. Digital audio format, as DTS-HD / Dolby-trueHD / LPCM 7.1 / DTS / Dolby-AC3 / DSD
9. Support signal retiming.
10. Need DC5V/2A power supply.
11. Input can be switched with the IR remote control, also can be controlled by two switch buttons.
12. The SPDIF audio output format can be chose by pressing the switch key or the remote.
13. It can come back to the default the input 1 status when restarted or reset.
14. Led status light allow the user to know the working status easily.
15. No loss of quality.
16. Installs in minutes.

Specification:

General

• Model VK-402
• Material Metal
• Input Port 2 x HDMI, DC 5V
• Output Port 4x HDMI, SPDIF, Audio
• HDMI Resolution 4K*2K
• HDMI Version 1.3
• Power DC 5.0V / 2.0A
• Video Color Format 30bit, 36bit
• HDMI Audio Format DTS-HD, Dolby-TrueHD, LPCM 7.1CH, DTS, Dolby-AC3, DSD

Package Contents

• 1 x User Manual
• 1 x Remote Control
• 1 x HDMI Splitter
• 1 x Power Supply
•
