HDMI Video Grabber Captur

Highlights

• 1080P record with one click, no PC required. Easy to use, no any set-up. You just click RECORD button to record your gameplay from PS3, PS4, Xbox360, etc. Save Memory - USB Flash or SD card (You can save it with USB Flash or SD card)
• Support HDMI, Component (Ypbpr), Composite Video input, Microphone input.
  Note: ezcap284 can't decode HDCP for HDMI, need buy a splitter or converter decode HDCP first, or record the via Ypbpr. or buy our ezcap283S.
• Support HDMI Pass through, you can play HD gameplay when you're recording it
• With RTC (Real-Time Clock recording) function, manage recording files easily and can Upload to YouTube
• With Remote Control, can record/stop,select the video source,change the recording quality between 1080 and 720,capture the still photo via the snapshot function. Support streaming Video to Youtube etc.

Only ONE Click to Start Recording your gameplay

HD Capture works standalone, only one click to start recording your game video, no computer required, no any settings. Record video up to 1080p resolution, save in USB host or SD card directly.

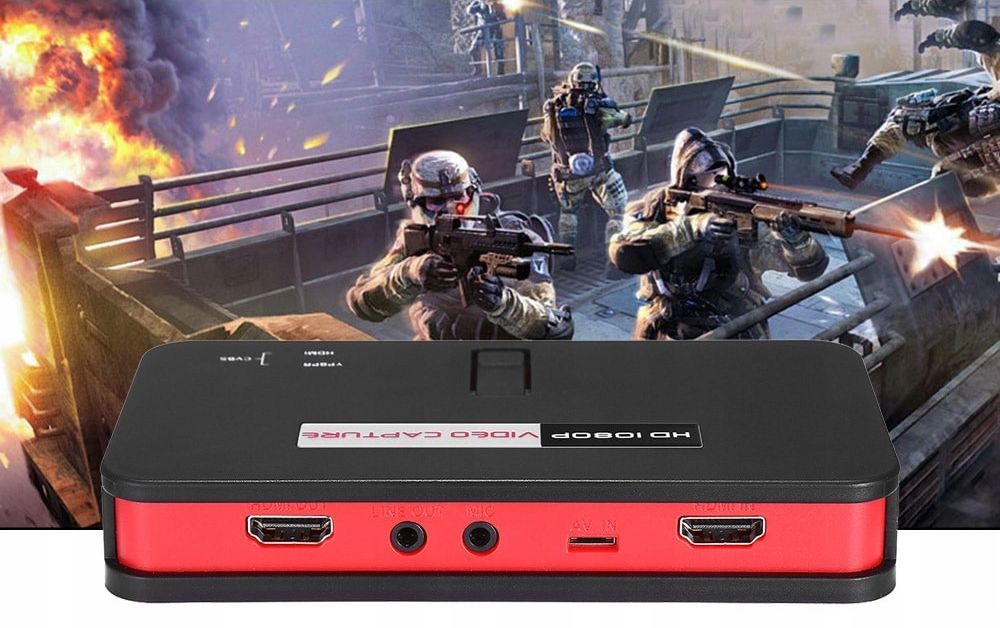

Rich Video Input Interface

HD Capture own rich video input interface, we call All-in-One - HDMI, Component Video and Composite Video, suitable for any gaming machines. Simple connection, and ezcap284 can detective input signal automatically. It also includes 1080p60 HDMI pass-through.

Mix your game commentaries with video together

HD Capture with audio mixing technology, it can record your game commentaries with gameplay together. User connect earphone to not interfere with others when playing the game is too late. ezcap284 includes a remote control, can reach functions by it: set recording resolution, image snapshot ...

Specifications

- Host Interface: USB 2.0, SD card
- Video Input: HDMI, Component Video, Composite Video
- Audio Input: HDMI, 3.5mm Microphone In, L/R Line In
- Video Output: HDMI
- Audio Output: HDMI, 3.5mm Line Out
- User Interface: REC button, LED indicator, Infrared Receiver
- Storage Media: USB Flash drive, USB Portable Hard Disk, SD card, FAT32 and NTFS
- Power Supply: USB-A port, DC 5V2A
- Codec: H.264
- Resolution:
Input / Pass-through: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p (60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)
Capture: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p (60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p) * Upscaling is not supported.
- Record Info: .mp4 aac stereo, max 16Mbps@1080p30fps, 2G per file with RTC, about 140MB per minute
- Package Contents: ezcap284 HD Capture, Remote Control, AV cable, DC adatper, Manual
- Dimensions / Weight: 140(L) × 70(W) × 23(H) mm, 115g

Features

- Capture HD video in USB host or SD card.
- All-in-One: supports multiple video input - HDMI, Component Video and Composite Video.
- Record your voice with video together by Microphone input.
- With 1080P60 HDMI pass-through.
- Supports image snapshot with remote control.
- Supports video source selection with remote control.
- Supports recording resolution selection with remote control.

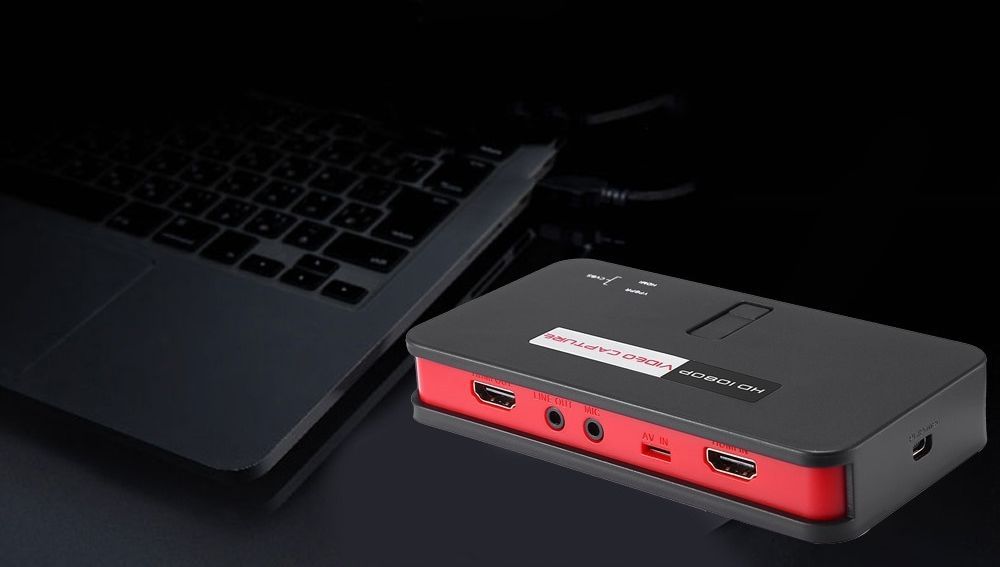

- Connect to PC to work as an USB video capture card with OBS.

Package Contents:

• Main Unit
• Adapter cable (for component and composite video)
• DC adapter
• Software CD
• User Manual
• Remote Control

No PC

Record directly to flash memory, hard drive or SD card.

1080P

Record video at 30fps 1080P with one button in real time. Microphone input. Thanks to the microphone input, you can record voice and video simultaneously.

Live streaming

You can share all your exciting moments with your friends whenever and wherever communication is needed.

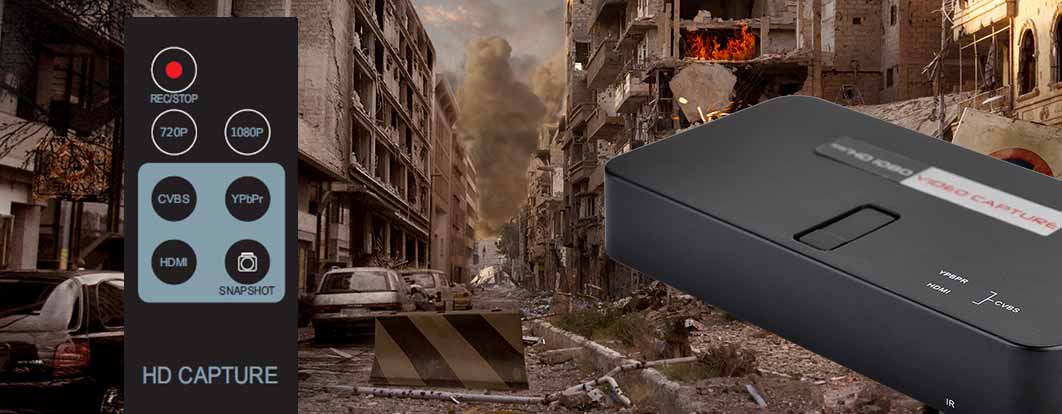

Functional remote control

Thanks to the remote control, you can start or stop recording from where you are without moving.
