✔ 4 in 1 out HDMI Quad multi-viewer allows 4 different HDMI devices display on one HDMI screen (TV, monitor, projector) at the same time. ✔ 3 Display Modes provide extra diversities on the display options. ✔ Support Video Resolutions: 1080P24/25/30/50/60Hz,1080i/ 720p/ 576p/ 576i/ 480p/ 480i ✔ Support Audio Formats: PCM 2.0, Does Not Support: Dolby Digital and DTS. NOTE: Only large screen mode has sound output from the 3.5mm Audio port. All other modes and all interfaces have not sound output. ✔ Transmit HDMI signal for up to 100 feet without losing picture quality. Plug & Play, No driver needed

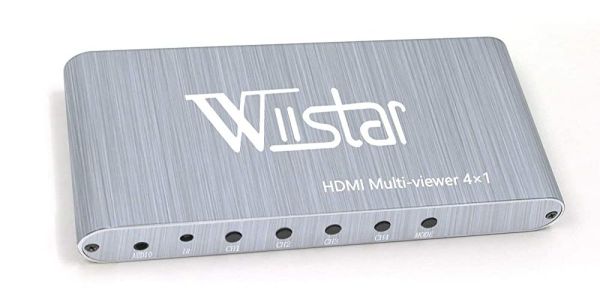

This product is a high performance 4 by 1 Quad Multi-Viewer with seamless switcher. It supports four High definition input source display on one screen, and have three multi-view effect mode. As a switcher, it can also seamlessly switch the four HD input freely. The product can be controled by various ways, through the front panel button control, IR control, In addition,this produсt have basic version and extender version.The Extender version can extend the video and audio signals over single 50m CAT5e/6 with Bi-directional IR control.
2. Features
Compliant with HDMI 1.3a,HDCP 1.2;

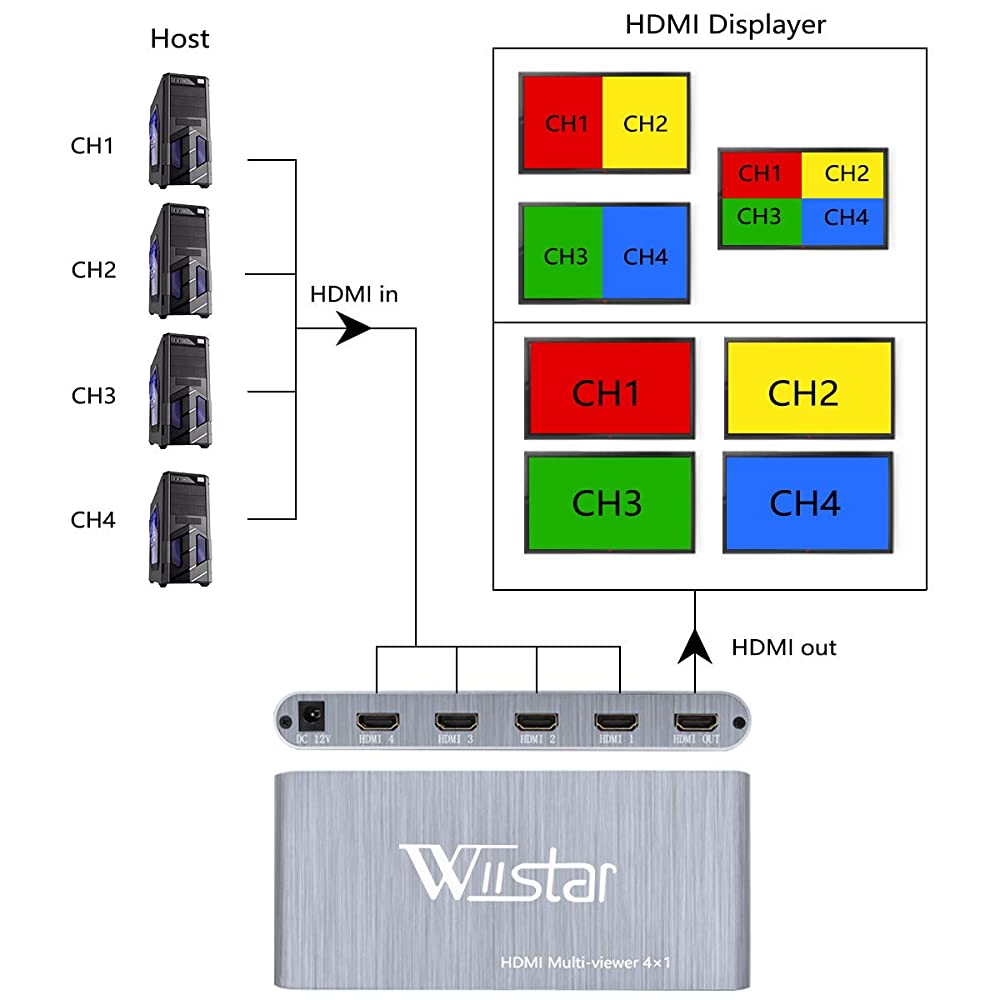

Supports multiplexed HDMI 4-input and 1-output;
Supports up to 1080p High Definition resolution;
Support 4by1 Quad Multi-viewer and seamless switch;
Support scaler up,scaler down function;
Support multi output resolution;
Support digital audio format LPCM
IR system allowing for control of source at display end;
Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 cable(Extender Version)

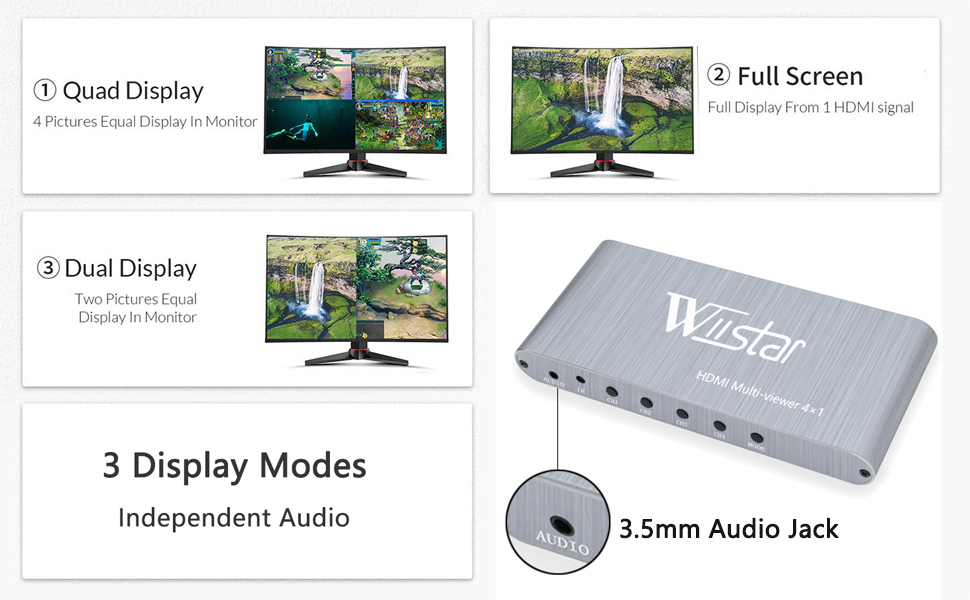

NOTE: Suppports 3 display modes: ① Full Screen; ② Quad display; ③ Dual display

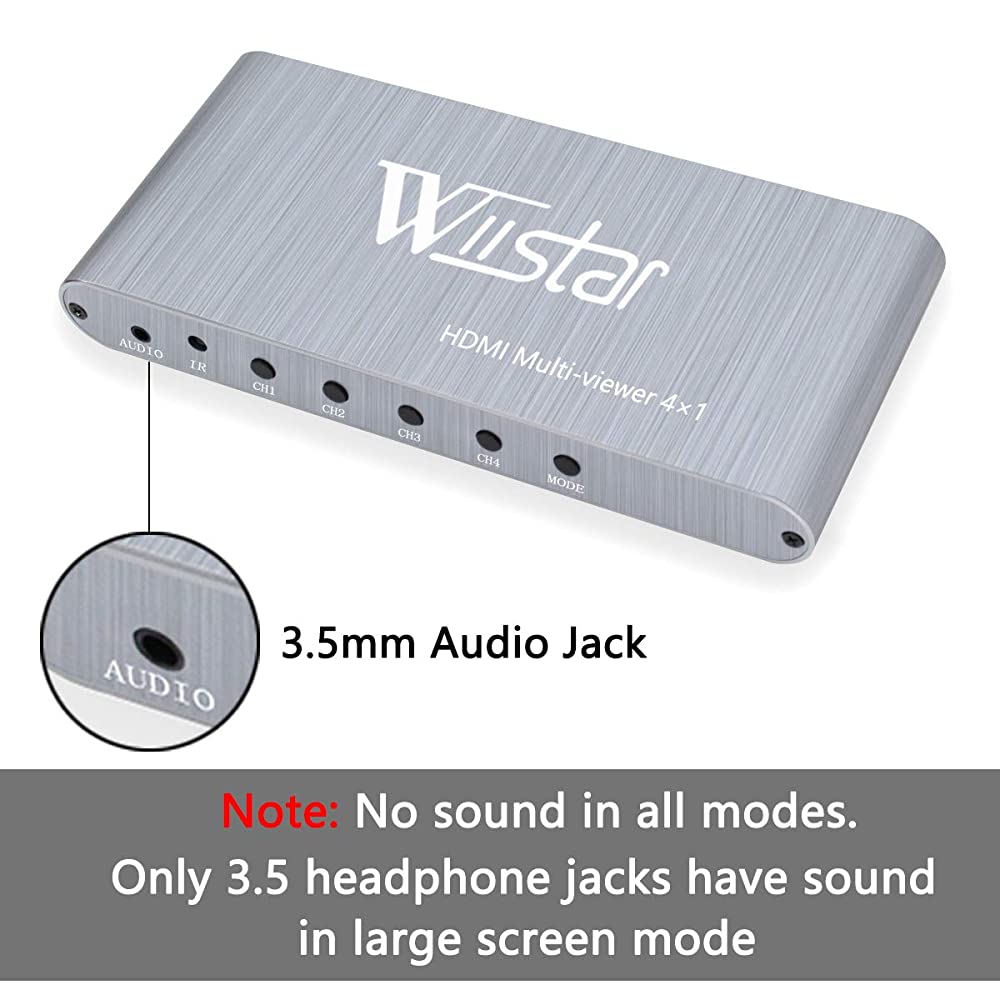

Only large screen mode has sound output from the 3.5mm Audio port,all other modes and all interfaces have not sound output
3. Specification
Video Bandwidth :2.25Gbps
Input Ports :4 × HDMI (Female type),
Output Ports :1 × HDMI (Female type), 1 x 3.5mm Audio port
